NEW IN CONTINUUM 2021, the BCC+ Eye Light filter creates a targeted light to be placed around a person’s eyes.

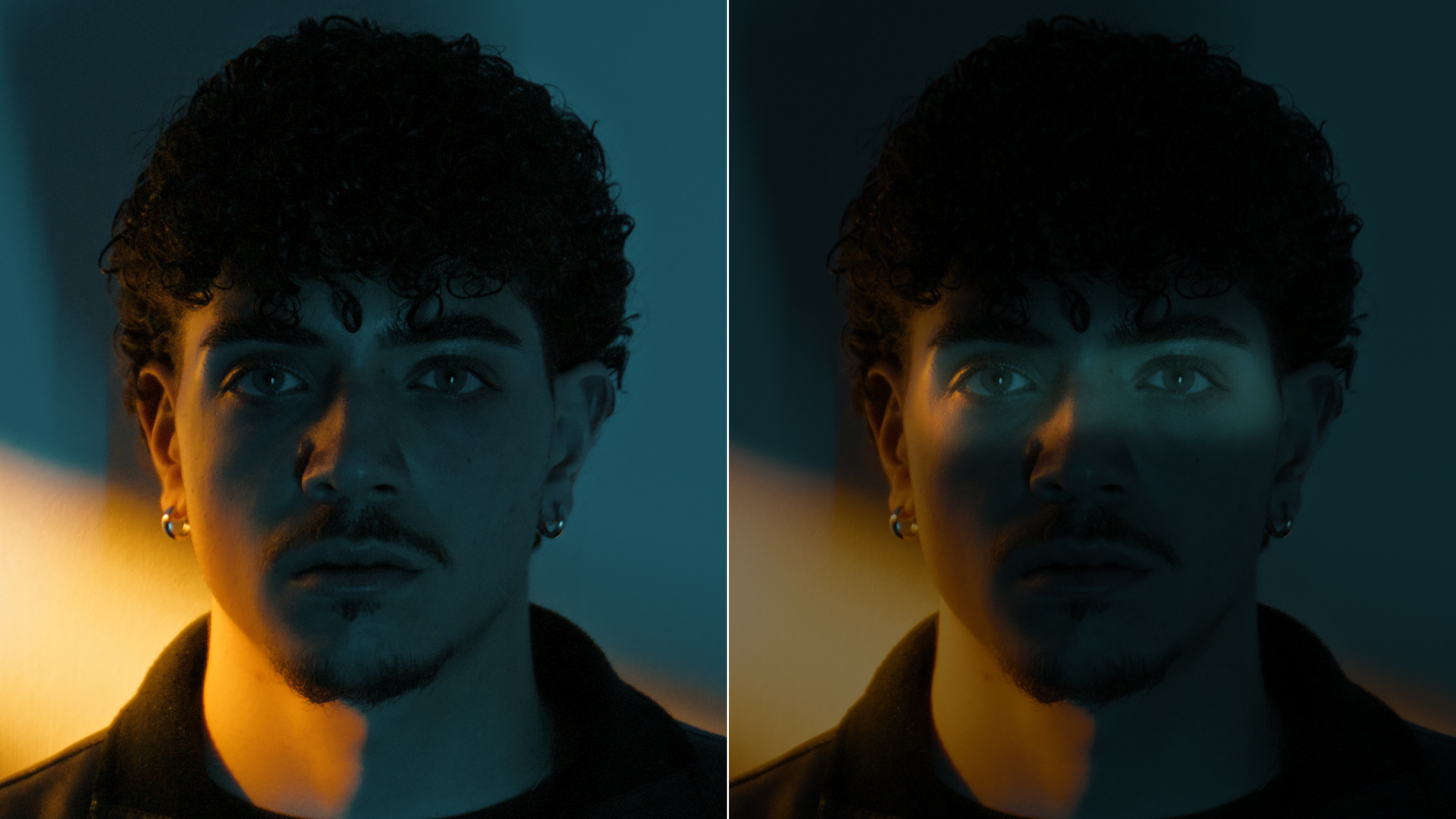

Before and After
Presets and the FX Editor
The FX Editor provides a convenient way to store and retrieve factory installed and/or user generated filter presets. To select a preset, open the FX Editor interface and pick one from the Presets panel. Click the apply button in the FX Editor to return to the host user interface.
To save a custom preset, click the “Create Custom Preset” icon in the top right corner of the parameter list, next to the filter name, set a name for the new custom preset in the dialog that appears and click done.
Blend: Determines the blend mode to be used to add the light.
- Add: The light is added to your image.
- Screen: The light is combined with the image using a Screen blend mode. This looks kind of like the Add blend mode, but highlights are retained.
Brightness: Sets the intensity of the light.
Blur: Sets the softness of the light.
Gels: Photographers, cinematographers and lighting designers use colored filters or gels in front of lights. Whatever mood you wish to create, we have the colors needed to achieve the effect. Select one of the Gels presets from the pop-up menu.
Color: Sets the color of the light through the use of a standard color picker.
Brightness: Sets the intensity of the shadows. The Brightness parameter will darken only those areas that are not being brightened by the Light settings.
The eyelight position can be adjusted in the host with the Corner Pin sliders as well as dragging the four points on the corners of the screen.
**Note:**You may need to zoom the image out a bit to see the corner points. In addition, to see and adjust the corner points in After Effects, make sure that the effect title in the Effect Controls window is highlighted. For Final Cut Pro, you must activate the cross hair icon next to the corner position parameters to see and adjust the corner points on the screen.
- Upper-Left: Controls the X and Y position of the Upper Left Point.
- Upper-Right: Controls the X and Y position of the Upper Right Point.
- *Lower-Right:*Controls the X and Y position of the Lower Right Point.
- Lower-Left: Controls the X and Y position of the Lower Left Point.
Positioncan be adjusted by clicking and dragging an on-screen control in the center of the image.
- Position X: The horizontal position.
- Position Y: The vertical position.
**Note:**For Final Cut Pro, you must activate the cross hair icon next to the Position parameter.
The scaleof the image can be changed by adjusting the vertical and horizontal scale parameters.
- Scale X: The horizontal scale.
- Scale Y: The vertical scale.
- *Gang Scale:*The Scale X and Scale Y slider values can be ganged together. When enabled, the scale parameter will not display individual X and Y parameters.
In addition to the standard position and scale controls, you can rotate. Positive values rotate clockwiseand negative values rotate counter-clockwise.
PixelChooser: The BCC PixelChooser provides a way for the user to select which pixels in the filtered source are actually going to be affected by the filter, via the generation of image based mattes, gradient mattes and vector shape masks. Mocha planar tracking and vector shape masking options are included in the PixelChooser, which allows for the generation of motion-tracked mask shapes as a hold-back mask.
For more information on the PixelChooser, Click Here.
Working with The Filter
- Apply BCC+ Eye Light from the BCC Lights Unit category.
- Click on the FX Editor button.The FX Editor user interface opens and consists of Presets, Parameters and Viewer windows.
- Using the Transform controls, you can transform the eye light.
- Select either the Light > Blend > Add or Screen Blend mode.Add will burn out highlights while the Screen Mode will retain them.
- Adjust the Light > Brightness to set the intensity of the light.Note:You can darken the entire image except for the eye light shape by adjusting the Shadow > Brightness.
- Use the Light > Blur sliders to control the softness of the light.
- To apply a custom light color to the image, click on the Color box and select a color.
- To apply a colored gel to the light, select one from the Gels pop-up menu.
- Click the Apply button to return to the host application.
The values of the parameter adjustments in the FX Editor user interface are transferred to your host application.
