BCC Brightness-Contrast
Category: BCC Color & Tone
Effect Name: BCC Brightness-Contrast
The BCC Brightness-Contrast filter, part of the BCC Color & Tone category, allows for precise control over the brightness and contrast of your image.
Included channel selection allows for refined adjustment of the individual red, green, and blue channels, while Pixel Chooser with built in mocha tracking provide the user with advanced masking and tracking solutions.
Working with the Filter
Presets and Common Controls
- BCC filters come with a library of factory installed presets plus the ability to create your own custom presets and preview them with the BCC FX Browserโข.
- BCC filters also include common controls that configure global effect preferences and other host-specific effect settings.
For more information about working with presets and other common controls, Click Here.
Effect Controls
Mocha Mask and Track
Continuum effects include integrated masking and matte tools that allow you to restrict the effect to specific regions of the image.
- Mocha masks: used to create custom spline masks. Mocha also includes Matte Assist ML and Matte Refine ML, which use machine learning to generate and track masks.
- Pixel Chooser: used to generate geometric shapes, gradients, or mattes based on channel, luma, or color-based selections. Additionally, an AI depth map generator, and an AI-powered face detection model allow for precise control of masks and mattes.
Note: Mocha can also be used to drive geometric parameters. See the Mocha Motion Tracker documentation for details.
For more information, see Mocha and Pixel Chooser.
Compare Mode
The Compare Mode is used to view the filtered result alongside the original source layer. Several split-screen and side-by-side display options are available.
For more information, see Compare Mode.
- Brightness:Used to adjust the brightness of the image.
- Contrast:Used to adjust the contrast of the image.

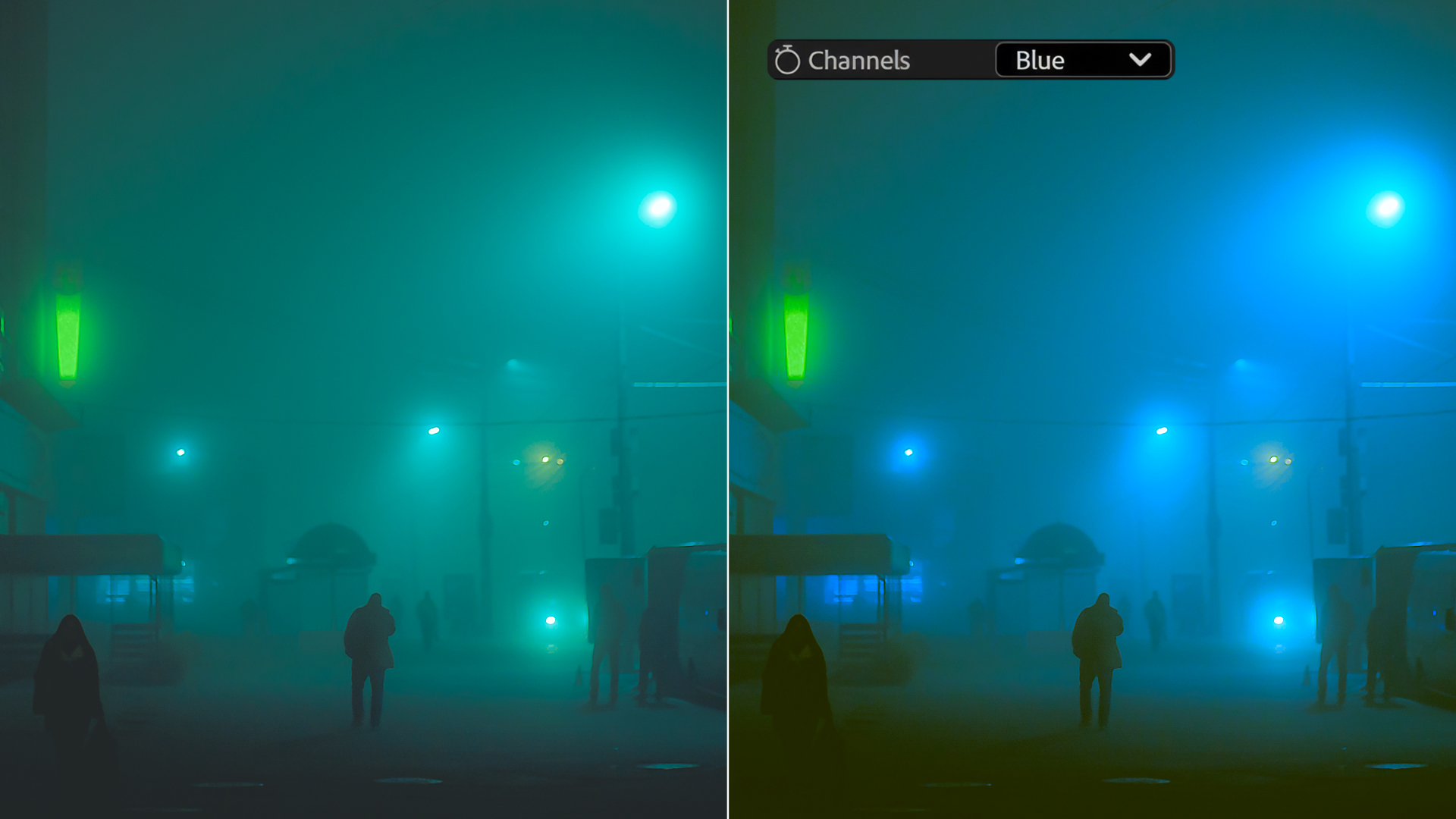

- Channels:Used to select the RGB channel that will be adjusted.
- RGB: The filter is applied equally to the RGB channel.
- Red: The filter is applied only to the Red channel.
- Green: The filter is applied only to the Green channel.
- Blue: The filter is applied only to the Blue channel.
- Red and Green: The filter is applied to the Red and Green channel equally.
- Red and Blue: The filter is applied to the Red and Blue channel equally.
- Green and Blue: The filter is applied to the Green and Blue channel equally.
- Difference: uses the difference between each filtered channel and the corresponding source channel.
- Mix with Original: Blends the source and filtered images. Use this parameter to animate the effect from the unfiltered to the filtered image without adjusting other settings, or to reduce the effect of the filter by mixing it with the source image.
