BCC Light Wipe

Overview

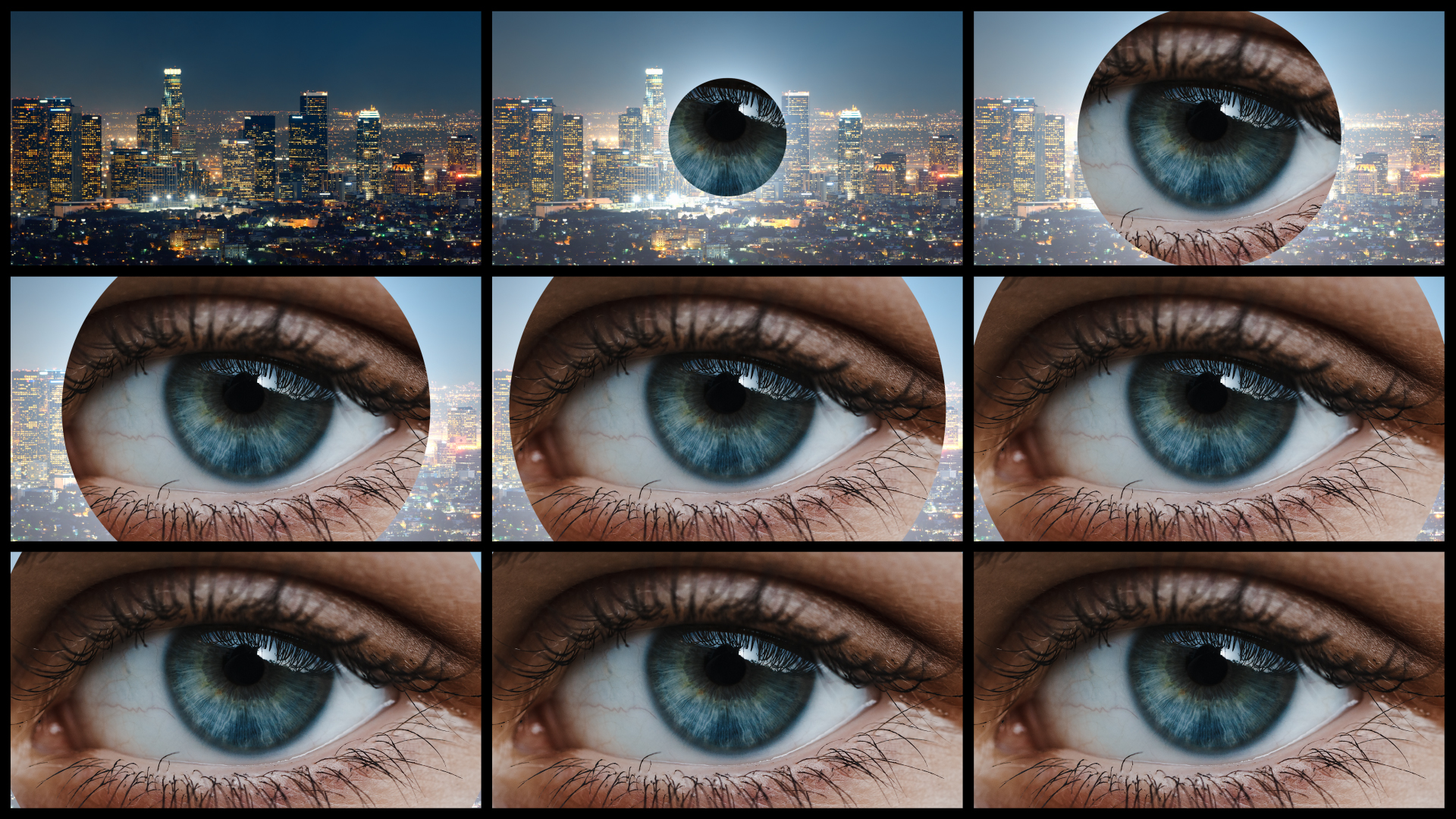

BCC Light Wipe uses a light source emanating from the edges of an expanding geometric shape to wipe away the layer.  The generated light can be based on either a solid color or can be sampled from the source image to create more pronounced ray-like elements.

BCC_Light_Wipe



Workflow Note – Alpha Clips and/or One-Sided Transitions: Due to this transition’s support for built-in drop shadows, you may need to take special steps to ensure the transition works properly when applied to clips that have transparency. Note that when applying the effect as a one-sided NLE-style transition (i.e. to the head or tail of a clip) the “empty” incoming or outgoing region is effectively treated as a fully transparent slug when in Adobe Premiere or Sony Vegas, and thus the same guidelines below for using this transition with alpha clips are relevant for those one-sided transitions as well. Note that in Avid hosts there is no alpha channel at all when applying as true NLE-style transitions so these special workflow considerations for alpha clips are not relevant in that context, although you can choose to apply these plugins as “effects” instead of true single-track “transitions” in Avid and in that case these tips would still pertain.

The approach you take depends on the details of which clip(s) contain transparency.

  • Both clips contain transparency: If both clips contain some transparency you must manually disable the Opaque Sources checkbox (which also turns off the Drop Shadow feature) to guarantee that the transition will generate correct, alpha-aware results on every frame. If you do not disable the Opaque Sources checkbox you may see sudden jumps at the beginning or end of the transition instead of a smoothly progressing effect.
  • Outgoing clip contains transparency or one-sided front-end transition: If the outgoing clip contains any transparency (or if you are applied as a one-sided front end transition in Premiere or Vegas) then you MUST turn off the Opaque Sources checkbox to ensure a proper transition.  Note that due to the way this particular transition generates a region of enhanced brightness around the wipe shape, it works best when applied to clips that have at least some non-transparent regions, and thus, while it will produce a valid transition, it’s use as a one-sided front end transition is not recommended since it will lack the brightness flare that typically accompanies this effect.
  • Incoming clip contains transparency or one-sided back-end transition: As long as the outgoing clip is fully opaque you can leave the Opaque Sources checkbox enabled and continue to make use of the Drop Shadow feature. This is true even if the incoming clip has transparency or if the filter is applied as a one-sided back-end transition.

Function

Presets and Common Controls

BCC filters come with a library of factory installed presets plus the ability to create your own custom presets and preview them with the BCC FX Browser™.

BCC filters also include common controls that configure global effect preferences and other host-specific effect settings.

For more information about working with presets and other common controls, Click Here.



Layer to Reveal:  This layer selection popup is not relevant when you have applied the filter as a true NLE-style transition and it will be hidden or disabled in that context.  When applied as a normal “effect” as opposed to a transition, however, this menu is used to select the Incoming or Reveal layer for the transition.



Compare Mode

The BCC Compare Mode provides a convenient mechanism to compare the effect result with the original source layer. It provides several variations on basic split-screen views with the filtered clip placed next to the unedited original.

For more information on the Compare Mode, Click Here.



Animation: Menu controlling what drives the animation of the transition.

  • Auto – automatically generates a transition based on the transition length (when used as a transition) or the clip length (when used as a filter.)
  • Percent Done – requires the user to set keyframes to control the transition progression.  Can be useful in customizing the exact timing of the transition or when applying the filter as a stylized effect as opposed to a direct NLE-style transition.

Percent Done:  Disabled/Hidden by default.  When the Animation menu is changed to Percent Done then this slider can be manually keyframed to control the transition progression.

Center:  Sets the center point for the transition and hub of any specified rotation.

Shape:   Sets the shape of the geometric wipe which grows from the center point.

  • Doors –  splits the source image into two parts.
  • Radial – wipes in a circular shape.
  • Rectangular – wipes in a rectangular shape.

Orientation:  Sets the amount of rotation applied to the wipe shape.

Intensity:  Sets the brightness of the light element.  A value of produces a simple geometric wipe with no adding lighting whereas higher values will produce progressively brighter lighting.

Color from Source:  When disabled the color of the lighting is uniform and is based on the Color parameter.   When enabled the color of the lighting is based on the pixel color in the source image near the boundaries of the geometric shape which produces the effect of rays emanating from the shape edges.

Color:  Specifies the color of the lighting when Color from Source is disabled.

Invert Wipe:  Reverses the direction of the wipe so that it expands from the outside towards the center point instead of from the center point outwards.

Opaque Sources:  When enabled, this tells the transition that it is applied to opaque images and thus for example that it is OK to apply the Drop Shadow (which is only supported when working with opaque clips).  If working with titles or other clips containing alpha objects you must disable this checkbox to ensure proper transition behavior.



Drop Shadow Group

Adds depth to the transition with a drop shadow between the upper and lower layers as the opacity of the upper layer is modified by the wipe pattern.  This feature is only supported when working with opaque clips.

Drop Shadow On:  Enable/Disable the drop shadow feature.

Color:  Sets the color of the drop shadow.

Strength:  Sets the strength (or effective opacity) of the drop shadow.

Direction:  Sets the angle in which the drop shadow is offset from the image.

Distance:  Sets how far the drop shadow shifts from the feature casting it.

Softness:  Sets how defocused the drop shadow appears to be.  Higher values produce shadows with softer edges.



Animation Tuning Group

These parameters control the overall timing of the transition.  On hosts which permit on-screen heads up display widgets (such as AE, Premiere, and Avid) you should never need to modify these sliders directly since they can be configured in a more convenient and intuitive manner by manipulating the widgets directly in your comp/preview pane.  On hosts without heads up display widgets you can use these sliders directly to fine tune your animation timing, taking advantage of the View Ease Curve option to help visualize the animation rates.

Ease In:  Control how quickly or slowly the effect amount increases at the beginning of the transition.

Ease Out:  Control how quickly or slowly the effect amount decreases at the end of the transition.

View Ease Curve:  (Only visible/enabled in hosts that don’t support heads up display widgets for manipulating these controls directly on screen.)  Enable this control to display a preview graph of the the animation curves rendered into in the composite window.
