Path Mask
A Path is an outline created by placing sequential points along an object. Think of it as connecting the dots if you will. Although paths can be open or closed, Optics only makes use of closed paths. Drawing a path is often a good solution for objects that can’t be masked in any other way.
Go to the Path Mask Tutorial to see how it works.
Create a Path
Create a path by clicking on the image in the Viewer. With each click of the mouse, a point is created. When done, click on the first point that was added to close the shape.
Note: If shapes overlap, a hole in the path is created.
Closing Open Paths
If you neglect to close a path and would later like to close it, select one of the end points and then select the other end point. The path will then close.
Selecting Points
Individual or multiple points can be selected. Once selected, various point editing operations are available.
Point Selecting Shortcuts
Shortcut
Action
Click a point
Selects one point
Click and drag over multiple points
Selects multiple points
Ctrl+click on a point
Toggles the selection on or off
Shift+click a point
Adds the point to the current selection
Point Editing
Significant modification to the path is made possible by point editing controls available through pop-up menus or keyboard shortcuts.
Point Editing Shortcuts
Shortcut
Action
Alt+click on a path
Inserts a new point along the path
Delete key
Delete all selected points
Click and drag selected points
All selected points move
Click and drag an unselected point
Moves one point
Alt+click+drag on a point

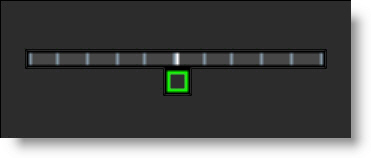

Opens a slider to adjust the point’s tension. Left of center forces the path to curve through the point (Cardinal spline). The center position creates a corner point while the right position moves the curve towards the center of the path (B-Spline). If multiple points have been selected, they will all be set to the same tension.
Alt+click+drag+Shift on a point
Snaps the point tension to Cardinal, Corner or B-Spline positions
Point Editing Pop-up Menu
Right-click over a path point or set of path points to open the Point pop-up menu.
Menu Option
Action
Cardinal
Creates a path that passes smoothly through each point
Corner
Creates a corner point
B-Spline
Creates a path that is determined by the surrounding points
Show Control Points
It is sometimes helpful to turn off the display of path points to see the accuracy of your path. When turned off, you can still adjust the hidden points by click+dragging on the path and the nearest point will be adjusted.
